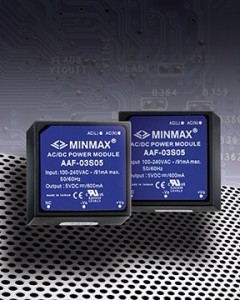

Compact 3W switching power supplies from Minimax

Minimax 3W switching AC-DC power supplies

Minimax 3W switching AC-DC power supplies

Minimax has launched 3W switching AC-DC power supplies in an encapsulated PCB mount package featuring measuring 1x1x0.64-inches

The AAF-03 series are a cost effective solution for space critical applications in consumer appliances, instrumentation and communication equipment, the company says.

It series consists of six models featuring universal AC input (85~264Vac – 47~440Hz) and regulated single output voltages ranging from 3.3Vdc ~ 24Vdc.

These power modules feature:

  • 3,000Vac isolation with reinforced insulation
  • built-in EMI-filter to meet EN55011/55022 class B and EN 55014
  • EN61000-4-2,3,4,5,6,8,11 EMC immunity
  • No minimum load requirements
  • Short circuit/overload/overvoltage protection
  • low stand-by power consumption <150mW complying with European ErP Directive 2009/125/EC.

Units have been qualified via CB Report and Class II safety certifications for both UL/cUL/IEC/EN 60950-1 (ITE applications) and TUV/IEC/EN60335-1 (household electronics).

All Minimax products are Reach compliant, RoHS compliant, conflict mineral free and come standard with a three-year warranty.

david manners

Microchip goes big on hardware-based security

Microchip PIC24F GB4 - Microchip goes big on hardware based security

Microchip PIC24F GB4 – Microchip goes big on hardware based security

Microchip has included a hardware crypto engine with both OTP and RAM options for secure key storage in its PIC24F ‘GB4‘ family, which also has up to 256kbyte flash and direct drive for 512 LCD segments.

Dual-partition live update flash allows the devices to hold two independent software applications, and permits the simultaneous programming of one partition while executing application code from the other.

“These features make the GB4 family ideal for industrial, computer, medical, fitness and portable applications that require secure data transfer and storage,” said the firm.

The crypto engine and random number generator run without the CPU – CIPs (core independent peripherals) in Microchip;s favoured three letter acronym form. AES, DES and 3DES are supported by the crypto engine.

One-time-programmable crypto-key storage it included to prevent keys being over-written, and key RAM erases keys if power is lost – to allow the real-time clock to keep running when primary power is removed, a Vbat pin can be used.

There are with (PIC24FJxxxGB4xx) and without (GA4xx) USB options, and 64, 100 and 121pin packages are available.

Tools including the PIC24FJ256GB410 plug-in module (MA240038) for Microchip’s the Explorer 16 Development Board.

Microchip PIC24F GB4Cryptographic engine:

  • Performs NIST standard encryption/decryption without CPU intervention
  • AES cipher support for 128, 192 and 256bit keys
  • DES/3DES cipher support, with up to three unique keys for 3DES
  • Supports ECB, CBC, OFB, CTR and CFB128 modes
  • Programmatically secure OTP array for key storage
  • True random number generation
  • Battery-backed ram key storage

The cores run up to 16MIPS at 32MHz. There is an 8MHz internal Oscillator and a 96MHz PLL option. Clock switching is on-the-fly for trading off power and speed.

Consumption is 180uA/MHz running and 60nA typical in deep sleep. Typically, the watchdog timer adds 650nA at 2V and that real-time clock needs 650nA at 32kHz and 2V.

steve bush

Microchip goes big on hardware-based security

Microchip PIC24F GB4Microchip has included a hardware crypto engine with both OTP and RAM options for secure key storage in its PIC24F ‘GB4‘ family, which also has up to 256kbyte flash and direct drive for 512 LCD segments.

Dual-partition live update flash allows the devices to hold two independent software applications, and permits the simultaneous programming of one partition while executing application code from the other.

“These features make the GB4 family ideal for industrial, computer, medical, fitness and portable applications that require secure data transfer and storage,” said the firm.

The crypto engine and random number generator run without the CPU – CIPs (core independent peripherals) in Microchip;s favoured three letter acronym form. AES, DES and 3DES are supported by the crypto engine.

One-time-programmable crypto-key storage it included to prevent keys being over-written, and key RAM erases keys if power is lost – to allow the real-time clock to keep running when primary power is removed, a Vbat pin can be used.

There are with (PIC24FJxxxGB4xx) and without (GA4xx) USB options, and 64, 100 and 121pin packages are available.

Tools including the PIC24FJ256GB410 plug-in module (MA240038) for Microchip’s the Explorer 16 Development Board.

Microchip PIC24F GB4Cryptographic engine:

  • Performs NIST standard encryption/decryption without CPU intervention
  • AES cipher support for 128, 192 and 256bit keys
  • DES/3DES cipher support, with up to three unique keys for 3DES
  • Supports ECB, CBC, OFB, CTR and CFB128 modes
  • Programmatically secure OTP array for key storage
  • True random number generation
  • Battery-backed ram key storage

The cores run up to 16MIPS at 32MHz. There is an 8MHz internal Oscillator and a 96MHz PLL option. Clock switching is on-the-fly for trading off power and speed.

Consumption is 180uA/MHz running and 60nA typical in deep sleep. Typically, the watchdog timer adds 650nA at 2V and that real-time clock needs 650nA at 32kHz and 2V.

steve bush

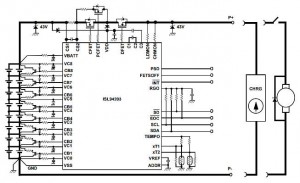

Intersil protects and controls Li-ion batteries for scooters

Intersil has announced a battery pack monitor/protector for 3-8 cell Li-ion cells - ISL94203

Intersil has announced a battery pack monitor/protector for 3-8 cell Li-ion cells – ISL94203

Intersil has announced a battery pack monitor/protector for 3-8 cell Li-ion cells, which also works with other battery chemistries.

Inteded for medium-power applications – mobility scooters, wheelchairs, e-bikes, hand tools, and vacuum cleaners; ISL94203 includes cell-by-cell control of external mosfet-resistor pairs for active cell balancing, as well as pack protection against short circuit and cell voltage shorts.

Unusual features include an open wire check to ensure the IC is securely connected to the battery pack, and a protection feature that blows a polyfuse to render the battery pack inoperable in the event of a catastrophic failure. And it can withstand battery pack hot plugging.

It operates with a microcontroller, or stand-alone with an internal state machine that has five pre-programmed cell handling stages to extend battery operating life.

Power rail switching is on the positive side, using n-fets and a charge pump, to allow customers to ground reference the battery.

Suitable for Li-ion CoO2, Li-ion Mn2O4, Li-ion phosphate and more.

There is an evaluation kit, ISL94203EVKIT1Z (see below), which includes a device board, an interface board with USB to I2C interface, and a software GUI for stand-alone or microcontroller operation.

steve bush

Intersil protects and controls Li-ion batteries for scooters

Intersil has announced a battery pack monitor/protector for 3-8 cell Li-ion cells - ISL94203

Intersil has announced a battery pack monitor/protector for 3-8 cell Li-ion cells – ISL94203

Intersil has announced a battery pack monitor/protector for 3-8 cell Li-ion cells, which also works with other battery chemistries.

Inteded for medium-power applications – mobility scooters, wheelchairs, e-bikes, hand tools, and vacuum cleaners; ISL94203 includes cell-by-cell control of external mosfet-resistor pairs for active cell balancing, as well as pack protection against short circuit and cell voltage shorts.

Unusual features include an open wire check to ensure the IC is securely connected to the battery pack, and a protection feature that blows a polyfuse to render the battery pack inoperable in the event of a catastrophic failure. And it can withstand battery pack hot plugging.

It operates with a microcontroller, or stand-alone with an internal state machine that has five pre-programmed cell handling stages to extend battery operating life.

Power rail switching is on the positive side, using n-fets and a charge pump, to allow customers to ground reference the battery.

Suitable for Li-ion CoO2, Li-ion Mn2O4, Li-ion phosphate and more.

There is an evaluation kit, ISL94203EVKIT1Z (see below), which includes a device board, an interface board with USB to I2C interface, and a software GUI for stand-alone or microcontroller operation.

steve bush

D-Wave claims massive quantum computing boost

D-Wave 2X quantum computing

D-Wave 2X quantum computing

D-Wave Systems in British Columbia, Canada, is the only company in the world selling quantum computers, and it counts Google and NASA among its customers.

But after four years on the market there is still no clear evidence its machines can solve problems faster than ordinary computers.

Now the firm has announced the D-Wave 2X, and claims it is up to 15 times faster than regular PCs. However, outside experts contacted by New Scientist say the test is not a fair comparison.

The theory behind such computers, which exploit the weird properties of quantum mechanics, is sound. A device built using qubits, which can be both a 0 and a 1 at the same time, promises to vastly outperform regular binary bits for certain problems, like searching a database.

But putting that theory into practice has proved tricky, and though experiments show the D-Wave machines display quantum behaviour, it’s not clear this is responsible for speeding up computation.

The D-Wave 2X is the company’s third computer to go on sale, and features more than 1000 qubits – double the previous model. Other changes have reduced noise and increased performance, says D-Wave’s Colin Williams.

D-Wave put the machine through its paces with a series of benchmark tests based on solving random optimisation problems.

600 times faster

For example, imagine a squad of football players, all with different abilities and who work better or worse in different pairs. One of the problems is essentially equivalent to picking the best team based on these constraints.

D-Wave compared the 2X’s results against specialised optimisation software running on an ordinary PC, and found its machine found an answer between two and 15 times as quickly. And if you leave aside the time it takes to enter the problem and read out the answer, the pure computation time was eight to 600 times faster.

“This is exciting news, because these solvers have been highly optimised to compete head-to-head with D-Wave’s machines,” says Williams. “On the last chip we were head-to-head, but on this chip we’re pulling away from them quite significantly.”

An important wrinkle is that finding the absolute best solution is much more difficult than finding a pretty good one, so D-Wave gave its machine 20 microseconds calculation time before reading out the answer. The regular computers then had to find a solution of equivalent quality, however long that took.

This makes it less of a fair fight, says Matthias Troyer of ETH Zurich in Switzerland, who has worked on software designed to enable regular computers to compete with D-Wave. A true comparison should measure the time taken to reach the best answer, he argues. “My initial impression is that they looked to design a benchmark on which their machine has the best chance of succeeding,” he says.

It’s a bit like a race between a marathon runner and a sprinter, in which the sprinter goes first and sets the end point when she gets tired. The marathon runner will struggle to replicate her short-range performance, but would win overall if the race were longer. “Whether the race they set up is useful for anything is not clear,” says Troyer.

But Williams says D-Wave’s customers aren’t interested in the absolute best solutions – they just want good answers, fast. “This is a much more realistic metric.”

Fair comparison?

Questions have also been raised about the PC used in the tests. D-Wave used a single core on an Intel Xeon E5-2670 processor, but that chip has eight such cores, and most PCs have at least four. Multiple cores allow a processor to split up computation and get results faster, so D-Wave’s numbers should come down when compared with a fully utilised chip, says Troyer.

Communication between cores introduces some slowdown, so doubling the number of cores doesn’t double performance, says Williams. Even assuming zero slowdown, you’d need a massive computer to tackle the largest problems, he says. “You’d need 600 classical cores to match us at that scale.”

Other computing hardware might be better suited to a competition with D-Wave, says Umesh Vazirani of the University of California, Berkeley – graphical processing units (GPUs) are often used for large-scale parallel computation.

“The proper comparison would be to run simulations on GPUs, and in the absence of such simulations it is hard to see why a claim of speed-up holds water,” Vazirani says.

Williams says D-Wave is planning to publish GPU benchmarks in future.

In the end, the only thing that will prove D-Wave’s machines really are working quantum computers is a runaway performance boost on larger and larger problems, known as “quantum speed-up”. D-Wave explicitly says it is not claiming such a speed-up with these tests – a good sign, says Troyer.

A previous test in 2013 claimed a 3600-fold performance increase but was later discredited and D-Wave took the criticisms on board. “I think they are getting much more serious in the statements they make,” Troyer says.

Syndicated Content: Jacob Aron, New Scientist



Alun Williams

D-Wave claims massive quantum computing boost

D-Wave 2X quantum computing

D-Wave 2X quantum computing

D-Wave Systems in British Columbia, Canada, is the only company in the world selling quantum computers, and it counts Google and NASA among its customers.

But after four years on the market there is still no clear evidence its machines can solve problems faster than ordinary computers.

Now the firm has announced the D-Wave 2X, and claims it is up to 15 times faster than regular PCs. However, outside experts contacted by New Scientist say the test is not a fair comparison.

The theory behind such computers, which exploit the weird properties of quantum mechanics, is sound. A device built using qubits, which can be both a 0 and a 1 at the same time, promises to vastly outperform regular binary bits for certain problems, like searching a database.

But putting that theory into practice has proved tricky, and though experiments show the D-Wave machines display quantum behaviour, it’s not clear this is responsible for speeding up computation.

The D-Wave 2X is the company’s third computer to go on sale, and features more than 1000 qubits – double the previous model. Other changes have reduced noise and increased performance, says D-Wave’s Colin Williams.

D-Wave put the machine through its paces with a series of benchmark tests based on solving random optimisation problems.

600 times faster

For example, imagine a squad of football players, all with different abilities and who work better or worse in different pairs. One of the problems is essentially equivalent to picking the best team based on these constraints.

D-Wave compared the 2X’s results against specialised optimisation software running on an ordinary PC, and found its machine found an answer between two and 15 times as quickly. And if you leave aside the time it takes to enter the problem and read out the answer, the pure computation time was eight to 600 times faster.

“This is exciting news, because these solvers have been highly optimised to compete head-to-head with D-Wave’s machines,” says Williams. “On the last chip we were head-to-head, but on this chip we’re pulling away from them quite significantly.”

An important wrinkle is that finding the absolute best solution is much more difficult than finding a pretty good one, so D-Wave gave its machine 20 microseconds calculation time before reading out the answer. The regular computers then had to find a solution of equivalent quality, however long that took.

This makes it less of a fair fight, says Matthias Troyer of ETH Zurich in Switzerland, who has worked on software designed to enable regular computers to compete with D-Wave. A true comparison should measure the time taken to reach the best answer, he argues. “My initial impression is that they looked to design a benchmark on which their machine has the best chance of succeeding,” he says.

It’s a bit like a race between a marathon runner and a sprinter, in which the sprinter goes first and sets the end point when she gets tired. The marathon runner will struggle to replicate her short-range performance, but would win overall if the race were longer. “Whether the race they set up is useful for anything is not clear,” says Troyer.

But Williams says D-Wave’s customers aren’t interested in the absolute best solutions – they just want good answers, fast. “This is a much more realistic metric.”

Fair comparison?

Questions have also been raised about the PC used in the tests. D-Wave used a single core on an Intel Xeon E5-2670 processor, but that chip has eight such cores, and most PCs have at least four. Multiple cores allow a processor to split up computation and get results faster, so D-Wave’s numbers should come down when compared with a fully utilised chip, says Troyer.

Communication between cores introduces some slowdown, so doubling the number of cores doesn’t double performance, says Williams. Even assuming zero slowdown, you’d need a massive computer to tackle the largest problems, he says. “You’d need 600 classical cores to match us at that scale.”

Other computing hardware might be better suited to a competition with D-Wave, says Umesh Vazirani of the University of California, Berkeley – graphical processing units (GPUs) are often used for large-scale parallel computation.

“The proper comparison would be to run simulations on GPUs, and in the absence of such simulations it is hard to see why a claim of speed-up holds water,” Vazirani says.

Williams says D-Wave is planning to publish GPU benchmarks in future.

In the end, the only thing that will prove D-Wave’s machines really are working quantum computers is a runaway performance boost on larger and larger problems, known as “quantum speed-up”. D-Wave explicitly says it is not claiming such a speed-up with these tests – a good sign, says Troyer.

A previous test in 2013 claimed a 3600-fold performance increase but was later discredited and D-Wave took the criticisms on board. “I think they are getting much more serious in the statements they make,” Troyer says.

Syndicated Content: Jacob Aron, New Scientist



Alun Williams

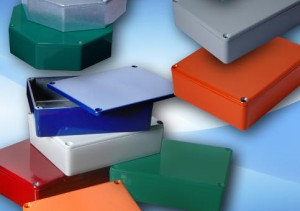

Taller tough die cast boxes from Hammond

Taller tough die cast Stomp Box boxes from Hammond

Taller tough die cast Stomp Box boxes from Hammond

Hammond has added taller versions of its 1590 ‘Stomp Box’ range of tough die cast metal equipment boxes with coloured finishes.

The range is designed for guitar effect foot pedals, and the latest one is 119 x 94 x 42mm, 12mm taller, than the traditional version with the same footprint to accommodate break-before-make switches that stop conducted interference when operated.

“All are rugged, easy to machine enclosures, well able to cope with the demanding on-stage environment in which they will be used. All types are finished in a smooth gloss polyester powder paint, which does not chip after machining and provides a good surface for labels and silk screening,” said Hammond.

Different coloured and shaped boxes allow quick identification.

Colours are:

  • Cobalt blue (RAL 5013)
  • Green (RAL 6024)
  • Light grey (RAL 7035)
  • Orange (RAL 2009)
  • Purple (RAL 4008)
  • Red (RAL 3011)
  • Yellow (RAL 1021)
  • and custom.

Shapes are:

  • Rectangular (five sizes including the new taller version)
  • Trapezoidal (wide and narrow)
  • Octagonal (one size)

To maintain RFI integrity, the painted finish is only applied to the external surfaces.

A lap joint seals the units to IP54, and an optional sealing gasket kit can be added to rectangular versions to raise this to IP65.

Other options include factory machining or factory silk screening on any model. AutoCAD and PDF dimensioned drawings can be downloaded assist with the design of modifications.

Use for preset effects such as distortion, wah-wah, delay, chorus and phaser is expected.

steve bush

Taller tough die cast boxes from Hammond

Taller tough die cast Stomp Box boxes from Hammond

Taller tough die cast Stomp Box boxes from Hammond

Hammond has added taller versions of its 1590 ‘Stomp Box’ range of tough die cast metal equipment boxes with coloured finishes.

The range is designed for guitar effect foot pedals, and the latest one is 119 x 94 x 42mm, 12mm taller, than the traditional version with the same footprint to accommodate break-before-make switches that stop conducted interference when operated.

“All are rugged, easy to machine enclosures, well able to cope with the demanding on-stage environment in which they will be used. All types are finished in a smooth gloss polyester powder paint, which does not chip after machining and provides a good surface for labels and silk screening,” said Hammond.

Different coloured and shaped boxes allow quick identification.

Colours are:

  • Cobalt blue (RAL 5013)
  • Green (RAL 6024)
  • Light grey (RAL 7035)
  • Orange (RAL 2009)
  • Purple (RAL 4008)
  • Red (RAL 3011)
  • Yellow (RAL 1021)
  • and custom.

Shapes are:

  • Rectangular (five sizes including the new taller version)
  • Trapezoidal (wide and narrow)
  • Octagonal (one size)

To maintain RFI integrity, the painted finish is only applied to the external surfaces.

A lap joint seals the units to IP54, and an optional sealing gasket kit can be added to rectangular versions to raise this to IP65.

Other options include factory machining or factory silk screening on any model. AutoCAD and PDF dimensioned drawings can be downloaded assist with the design of modifications.

Use for preset effects such as distortion, wah-wah, delay, chorus and phaser is expected.

steve bush

Cavendish Kinetics raises $36m for RF R&D

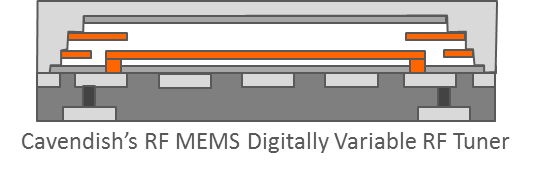

Cavendish RFMEMStuner CK_MEMS_processCavendish Kinetics, the RF MEMS specialist, has completed its final funding round with a strategic raise of $36 million, to accelerate the development of its next generation RF components.

The company’s new generation of RF components adds a range of virtually loss-less RF MEMS switches to its portfolio of RF MEMS tuners.

Together the new components will enable  radio front-end applications, including the high-performance tuning of antennas, filters and power amplifiers as well as ultra-low loss switching of the RF signal path, it says.

“There is a critical need for low loss RF switching as OEMs design radios for 4G and 5G capability, and commercialising our ultra-low loss RF MEMS switch to meet this need is a major focus for Cavendish, now that our first generation RF MEMS tuners have fully ramped and are shipping commercially,” says Paul Dal Santo, CEO of Cavendish Kinetics.

“SOI switch technology is fundamentally limited by its high insertion loss, and is not well suited for RF front-ends requiring high voltage handling or high linearity. Our RF MEMS switches will deliver a 10x improved ‘figure of merit’ compared to what today’s SOI switches can achieve, transforming the way LTE radios are designed.”

Cavendish’s new generation of RF MEMS components is based on a simple enhancement of its ‘switchlet array’ design, which has a MEMS cycle life of over 100B cycles.

The company’s next generation of RF MEMS tuners will now provide increased tuning range and RF voltage handling, enabling additional radio performance gains.

Samples of Cavendish’s new generation RF MEMS components will be available in the first quarter of 2016, and ramp into volume production in the second half of 2016.

See alsoCavendish Kinetics’ RF MEMS tuner passes 100bn cycle test



david manners
