LED street lights need better lightning protection, says Osram

Lightning density in Europe differs significantly from region to region.

Lightning density in Europe differs significantly from region to region.

The introduction of LED street lighting has raised a new problem. How can the electronic drivers be protected from voltage peaks from lightning strikes.

The problem with LED lighting modules is that they operate at lower voltage levels and could be damaged from overvoltage.

According to LED supplier Osram, this danger has increased with the UN Climate Council identifying increasing levels of lightning worldwide in its fifth assessment report (IPCC14).

“Around 10% of the several million lightning strikes occurring each day impact on the ground, thereby causing voltage peaks. To effectively protect LED modules assembled in road luminaires, the Osram Optotronic 4DIM features overvoltage protection of 8 kilovolts as standard,” said Osram.

Levels of lightning density in Europe are high in summer, particularly in July and August, and with large regional differences – the UK Meteorological Office recorded between just 0.25 and over 20 strikes per square kilometre in 2014.

Osram believes that it is necessary for the electronic control units to have voltage protection of up to 8kV between mains supply and ground in protection classes I and II.

“This means that lightning can strike an area of up to 200 metres from a luminaire mast without the LED module being damaged,” said the supplier.

Osram has designed 8kV protection into its LED controllers with a so-called EQUI connection (equipotential) for protection class II applications, which it claims can reduce the occurrence of overvoltage on the LED module.

Overvoltage though does not automatically mean the immediate failure of an LED module, but can cause premature ageing and therefore shorter operating periods; this has consequences for the operator in terms of costs.

Graph shows 8kV overvoltage protection provided by the Optotronic 4 DIM from Osram.

Graph shows 8kV overvoltage protection provided by the Optotronic 4 DIM from Osram.

Normally, LED solutions have low failure rates and achieve up to 100,000 operating hours.

The LED control units also need to be protected from voltage peaks from two other hazardous sources: – those with up to 6kV due to load changes or switching commands in the power supply grid and from electrostatic discharge (ESD) occurring with for example maintenance work, if no ESD protective measures exist.

















Richard Wilson

Display makers see shakeout in ITO replacement market

plainheadshot139

Dr Khasha Ghaffarzadeh

The market transparent conductive film which is used in the production of displays, solar cells and touch screens, will reach $1.2bn in 2025 at the film level (ITO-on-glass, LCD and OLED displays are excluded), writes Dr Khasha Ghaffarzadeh, head of consulting, IDTechEx.

Displays and solar cells need light to enter at least one side of the device. At the same time, they have to close a circuit and therefore require a transparent conductive film (TCF).

The mainstay material is indium tin oxide (ITO) on glass, which has proven excellent but has several short comings. For example, for larger area touch screens, ITO becomes too resistive for desired rapid response touch sensing.

For the new wave of flexible displays, ITO also cracks under little strain. Additionally, indium supply is also heavily controlled. Therefore over 50 companies around the world, from small to large, have been pursuing replacing ITO, and over 10 types of solutions exist.

ITO on PET rather than glass will dominate, but ITO alternatives will reach a combined market value of $430m in 2025. This market will be very unevenly spread between different ITO alternative technologies with silver nanowires and metal mesh taking a lion’s share ($317m in 2025).

Touch-related applications currently dominate the sales of TCF films, although the end markets are beginning to change. Currently, the share of non-touch markets is <<5%, but IDTechEx Research expects it to reach a substantial 17% in 2025.

These emerging applications include smart windows, OLED lighting, emerging photovoltaics, reflective displays, and more. They, together with larger-sized or flexible touch screens, will shape the requirements landscape of this sector.

Challenging market conditions

Strong trends have long undermined the dominance of the incumbent, the ITO films. Most notable are trends towards lower sheet resistance, increased flexibility and reduced cost.

These trends continuously push ITO films towards or even beyond its performance limit, thus triggering the proliferation of ITO alternative (substitute) technologies and suppliers.

The incumbents have however responded using a two-pronged strategy: (1) doubling the production capacity worldwide and (2) slashing prices at the expense of profit margins.

The former strategy ensures that there no longer exists a tight supply-demand relationship, making this once again a strong buyers’ market. The latter strategy ensures that incumbents don’t lose a client solely on price. Indeed, they lower their prices piecemeal every time an alternative is to close a deal.

These are classic symptoms of a market characterized by a strong threat of substitutes. Here, the end customer is happy but the ITO alternative suppliers face make-or-break years, whilst ITO suppliers (incumbents) are now engaged in a low-margin game of share protection.

The market conditions were made more challenging because growth in emerging sectors in which ITO alternatives commanded a clear performance advantage undershot expectations.

We anticipate that these market forces will trigger a consolidation phase in the industry during which ITO alternative leaders will emerge, whilst many poorly-funded and poorly-differentiated suppliers will disappear.

At the same time, we believe that the value proposition for leading ITO alternative technologies remains compelling. They will become a market reality although their journey will be slow because ITO films remain good enough for most existing applications. Therefore, at least initially, their success is linked to the growth of new types of devices, such as larger area devices.

The performance bar has been raised

Silver nanowires and metal mesh offer a lower sheet resistance than both ITO and other alternatives without significantly compromising optical quality. Their pricing strategy continues to be based on undercutting ITO to maintain a more-for-less value proposition, although this is becoming increasingly challenging.

In fact, they have increased the performance bar so high that the likes of carbon nanotubes and graphene will be blocked out of the main markets and be pushed towards niche use cases.

This suggests that developers of these technologies need to be imaginative again and build on their stronger differentiators such as stretchability, thermoformability, etc. This change of focus is already underway but will come too late for some.

The battle between metal mesh suppliers will be fought on narrowing the linewidth and improving throughput and yield (biggest cost unknown/driver). Amongst silver nanowire suppliers, haze was a point of contention, but now attention is focused on innovation at the formulation level. Here, the first mover advantage will also matter whilst the IP landscape is now no longer white, which further prevents access to new comers.

The next phase of innovation will focus on more hybrid systems and disruptive ways of patterning.

IDTechEx Research has released a new research study titled “Transparent Conductive Films (TCF) 2015-2025: Forecasts, Markets, Technologies”.



Richard Wilson

Merged memory company adds to fast flash line

Cypress HyperFlash_MemoryCypress Semiconductor has seen early benefits of its $5bn merger with Spansion with a new 256Mbit memory device added to the Spansion NOR HyperFlash product line.

HyperFlash is a high speed memory architecture which can achieve double-data-rate (DDR) read bandwidths as high as 333Mbyte/s for 1.8V products.

It is intended to provide a migration path from Quad SPI to dual Quad SPI to HyperFlash memory, offers 3.0V and 1.8V versions and includes three densities: 128, 256 and 512Mbit.

Hiro Ino, senior director of the NOR Flash product family at Cypress, sees a  trend toward instant-on systems for automotive, industrial and communication applications, and chipset manufacturers looking for a high-bandwidth, low-pin-count flash memory interface.

The HyperBus interface was introduced by Spansion last year for high speed, low pin-count NOR flash memory.

Processors that have been publically announced to support the HyperBus interface include the Freescale MAC57D5xx Automotive DIS MCU, the Cypress FM4 S6E2DH general purpose MCU and the Cypress Traveo S6J324C and S6J326C automotive MCUs.

The efficient 12-pin HyperBus interface consists of an 8-pin address/data bus, a differential clock (2 signals), a chip select and a read data strobe for the controller—all of which help reduce the overall cost of the system through reduced pin count.

The new S26KL256S HyperFlash device is available in a 48-mm2 24-ball package, and has an extended temperature range of -40ºC to +125ºC.



Richard Wilson

Cambridge firm designs smallest wireless IoT module

Amiho AM090 module

Amiho AM090 module

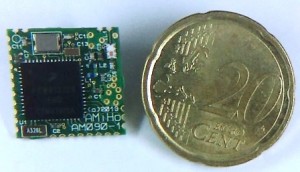

Amiho Technology has designed one of the industry’s smallest wireless modules for connecting smart meters and internet of things (IoT) devices.
