The BBC Micro Bit programmable device for school children was first announced back in March, along with a prototype. And the finished article was formally launched today at an event in Broadcasting House, London.
Around 1 million of the devices will be given to all Year 7 children (11/12 year-olds) in the UK by late October (an online simulator, to help teachers get to grips with it, will be available in September).
Deliberately invoking the legacy of the BBC Micro of the early 1980s, the device is aiming to change the emphasis from consumption to creation when it comes to young people and technology.
As well as open sourcing the technology behind the Micro Bit, the BBC is also setting up a not-for-profit company to license the device and make it commercially available to everyone who is interested.
Citing the original BBC Micro, Tony Hall, director-general of the BBC, said at the launch: “We want to take the legacy and reinvent it for our age, so that future generations can say ‘this inspired me'”.
The BBC Micro was part of a BBC Computer Literacy Project and it was designed and built by Acorn Computer, which developed the ARM (Acorn RISC Machine) architecture that is so prevalent today in mobile devices, and at the heart of the Internet of Thuings concept.
From Acorns to IoT

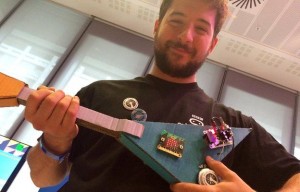

Technology Will Save Us – Micro Bit guitar
The Micro Bit collaboration actually involves a wide range of other companies and organisations, such as Samsung, Nordic Semiconductor, Farnell element14, Bluetooth SIG, Technology Will save Us, Barclays Bank, Microsoft, Lancaster University, Wellcome Trust and more.
The spec? Tongue in cheek, the Head of BBC Learning, Sinead Rocks, said that the device was faster and smaller than the BBC Micro (18x faster, 70x smaller and 617x lighter, to be precise). It runs on a 32-bit ARM Cortex-M0 CPU, the smallest ARM processor available.
She described it as having 25 programmable LEDs, two physical buttons, and an accelerometer and magnetometer (compass) for motion and positioning information. And its Bluetooth Smart capable.
The operating system has been developed by Lancaster University, led by Dr. Joe Finney, and uses ARM mbed technology for interfacing to the hardware.
There are two code editing interfaces, both developed by Microsoft: the Block Editor for younger users, and the Touch Development Environment, for older users. You can code in Java, C++, Python and Block.
There are five I/O rings to connect the Micro Bit to other devices or sensors using crocodile clips or 4mm banana plugs, to send commands to and from the rings, to power devices like robots and motors.
The 4cm by 5cm device is powered via a USB cable, or otherwise via a battery-pack accessory

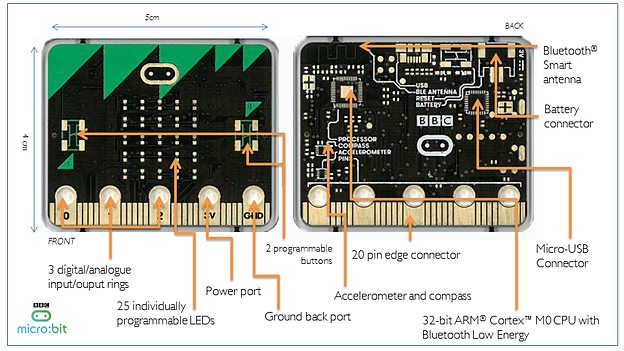

BBC Micro Bit board layout
Rocks said she hoped it would get kids “creative with coding” and described it as “biggest educational initiative the BBC has ever led”:
“The BBC Micro Bit is all about young people learning to express themselves digitally. As the Micro Bit is able to connect to everything from mobile phones to plant pots and Raspberry Pis, this could be for the internet-of-things what the BBC Micro was to the British gaming industry.”
Speaking at the event, Richard Curtin, global director of strategic alliance at Farnell element14 – who will managing the manufacturing of the devices – welcomed the initiative: “The electronics industry relies on new engineers to come through and the BBC’s efforts will have a strong effect.”
ARM, Lancaster, Freescale, Samsung…
How do the various partners fit together?
The BBC Micro Bit was created using the ARM mbed hardware and software development kits and compiler services. other companies, such as Microsoft and Lancaster University’s operating system all interface into the mbed technology.

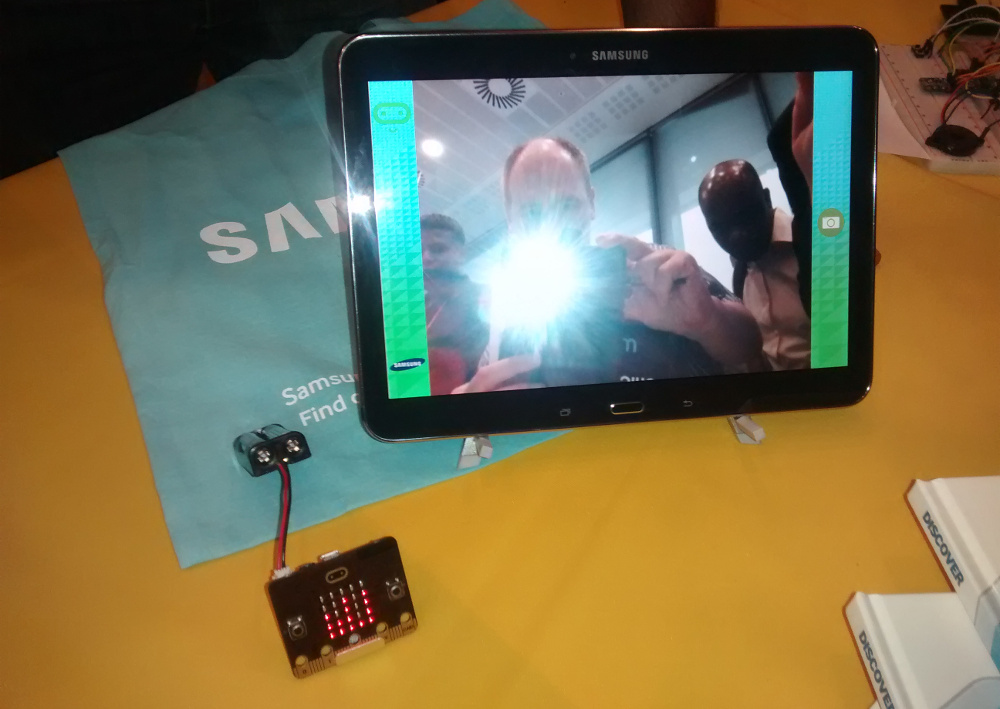

A new way to take selfies with the BBC Micro Bit
For example, it enables Lancaster University’s Micro Bit runtime system and the Microsoft programming interface to sit on top of mbed’s cloud compiler service. This converts users’ programmes into Micro Bit code. These files are ‘flashed’ onto the device over USB or BLE for the board to run.
Freescale is responsible for supplying the sensor technology within the device: the accelerometer, the magnetometer, and the Micro-USB controller (the Kinetis KL02) fro the Micro-USB port.
The latter allows users to connect the Micro Bit to their computers and for them to appear in a similar way to a USB drive. Users can then drag their compiled code file onto the Micro Bit and run it.
Freescale has also provided the motion sensors that enable the Micro Bit to react to movement and the direction it’s facing. The idea, of course, is these will allow children to create applications based on position and whether they shake, turn or tilt their Micro Bit.
On the mobile side of things, Samsung is helping smartphones and tablets communicate with the device. By enabling the Micro Bit to tap into the functions of everyday digital devices – a new Bluetooth Smart profile has been specifically created for Micro-Bit by the Bluetooth SIG (an official “BBC micro:bit product champion”) – it opens up more possibilities for imaginative uses. For example, selfies. Kids could code their Micro Bit to launch their phone camera remotely to take a picture at the push of a Micro Bit button. Or they could code their device to act as a remote control to play music on their phone. Basically opening up the functionality of their phones to exchange data and commands, enabling users to play games and share their creations.
Samsung will also publish an app that will support the Micro Bit coding environment on (Android) mobile devices, supporting on-the-go programming. Samsung says it “will help introduce the Internet of Things and the future of connected technologies into the classroom”.
In the BBC’s own words:
ARM – providing mbed hardware, software development kits and compiler services
Barclays – supporting overall product delivery and outreach activities
element14 – sourcing components and managing the manufacturing
Freescale – supplying the sensors and USB controllers
Lancaster University – creating and writing the micro:bit runtime
Microsoft – providing the TouchDevelop web-based programming tools and hosting service as well as teacher-training materials
Nordic Semiconductor – supplying the main processor and enabled Bluetooth Smart
Samsung – connecting the BBC micro:bit to phones and tablets, and developing the Android app
ScienceScope – distributing to schools and developing the iOS app
Technology Will Save Us – designing the shape, look and feel of the device
The Wellcome Trust – providing learning opportunities for teachers and schools
Why not simply work with the Raspberry Pi Foundation? The BBC says the simpler Micro Bit is aimed at helping younger children to start learning how computers work, and will then be a springboard for relatively more advanced devices like the Raspberry Pi and Arduino.

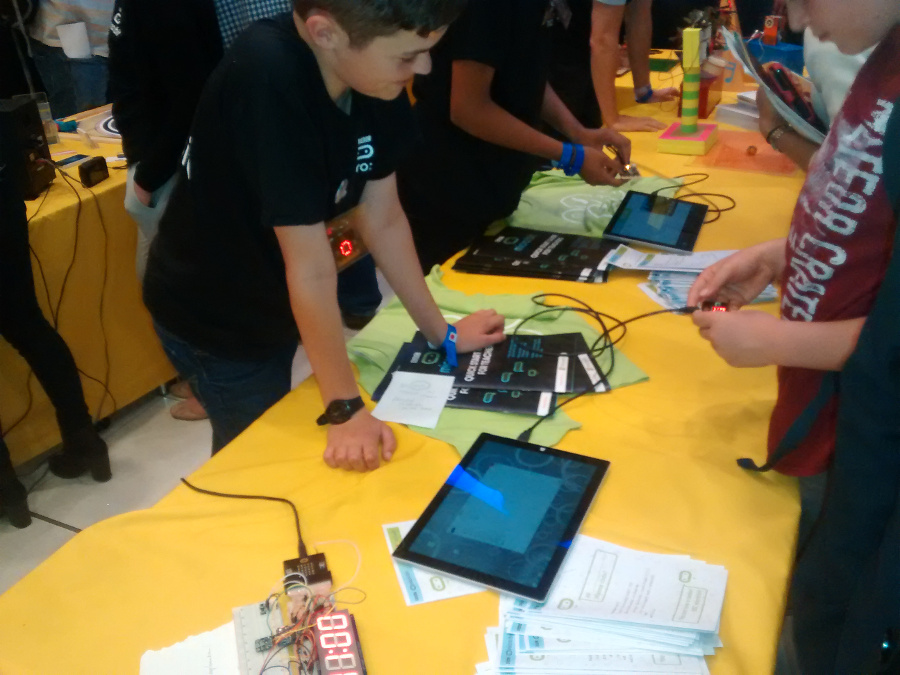

Hands on demo of Micro Bit
Dara Ó Briain was host of the launch event, and coincidentally he pops up in a video I was recoding of the BBC Micro Bit coding interface:
Note that The Micro Bit no longer contains a slot for a watch battery, which was featured in the prototype.
The BBC has launched its Micro-Bit (micro:bit) programmable device, which will be given free to all Year 7 children in the UK. Here we see a demo of the BBC Micro-Bit user interface.
Dara Ó Briain was host for the launch event at the BBC, and coincidentally joins me for the the Microsoft Touch Development Environment.
ARM, Nordic Semiconductor, Samsung, Microsoft, Freescale, Farnell element14 and Lancaster University were among those who supported the project.
There are actually two code editors with the Micro-Bit: Microsoft Block Editor, for younger users, and the Microsoft Touch Development Environment, for more advanced users. In the video, we see the latter.
This month features cloud-based set top box services. Michael Jaeger, patent attorney at leading UK patent and trade mark attorneys Withers & Rogers LLP, writes:
GB Patent Number: GB2476668 Granted to: Sony Europe Limited
We’ve all heard of (or been unfortunate enough to have experienced) the ‘blue screen of death’, when a computer suffers a fatal system error. In a variant of this phenomenon, last week I encountered the ‘green screen of death’. This came to me courtesy of a Whatsapp message from my son accompanied by the message “Dad, the TV’s broken”.
Following a phone call to our service provider, a replacement set top box was speedily despatched and my son was happy again. My son was happy again, until I informed him that he had lost his collection of Top Gear recordings. Thankfully, he didn’t punch me after hearing that bad news.
A few days later I attended the Connected TV World Summit conference, where the technologies underpinning the next generation of television evolution were discussed. One of the speakers presented their cloud-based set top box service and explained that a key selling point for TV service providers is eliminating the cost of providing physical set top boxes and replacing them when they develop a fault. In addition, service providers are able to offer a ‘TV anywhere’ service to their subscribers, allowing users to view content on their phones, tablets and TVs, all with a consistent user interface and experience.
This month’s patent, granted on 17 June 2015 to Sony Europe Limited, addresses a similar need, but goes one step further.
Follow-me viewing
We are used to ‘consuming’ content on different devices, whether we are on the move or at home. The patent describes a scenario where a programme is being watched in the lounge and the viewer decides to continue watching in the bedroom. Having reached the bedroom, the viewer should be able to seamlessly pick up from the same position where they left off, with the programme ready to go as soon as the play button is hit.
This type of activity is known as “follow-me” viewing and the patent observes that the solutions currently available possess a number of drawbacks. For example, they may require the viewer to “summon” the content, which could take some time to load and buffer. As well as applying to content which is streamed from the cloud, ideally solutions should also work with live (known as “linear”) programming.

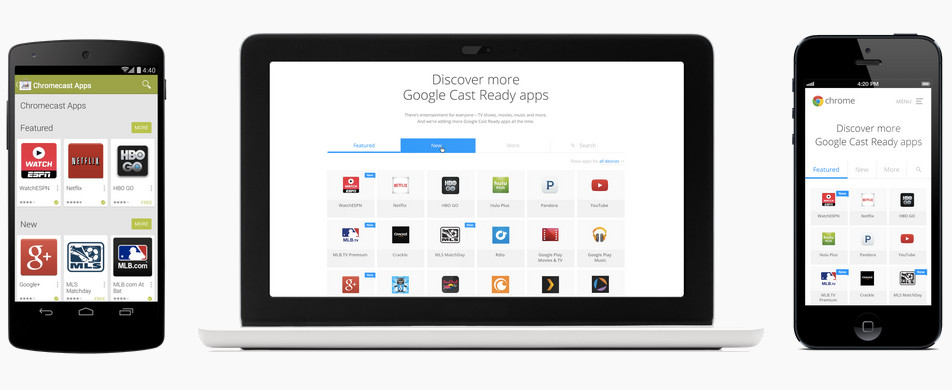

Cloud-based set top box and Casting
